透明显示 Transparent Display
灵境视窗 Lingjing ViewWindow
Transparent Display for Museum Exhibitions
PD898TAN02-V01 | 89.8"
灵境视窗系统打破了传统博物馆的展示界限，以"让沉睡的历史'活'起来"为核心理念，用前沿显示技术给文物注入数字生命。
当您盯着千年前的青铜器、精巧的玉器或是传世书画时，透明屏幕就像无形的手指，轻轻拂去时光尘埃，在文物上方叠加出动态历史情境。这可不是简单的信息展示，而是一场跨越千年的对话——让文物自己讲历史，让往昔场景在眼前重现，让您从被动"观看者"变身为主动"参与者"，在视觉与情感的共鸣中，真切触摸到历史的温度与脉搏。
The Lingjing ViewWindow system breaks through the display boundaries of traditional museums, centering on the core philosophy of "bringing dormant history to life," using cutting-edge display technology to infuse cultural relics with digital vitality.
As you gaze at a millennia-old bronze vessel, an exquisite jade artifact, or a treasured painting, the transparent screen acts as an invisible hand, gently brushing away the dust of time to overlay dynamic historical contexts above the artifact. This is not mere information display — it is a dialogue spanning thousands of years. Artifacts tell their own stories, past scenes reappear before your eyes, transforming you from a passive "viewer" into an active "participant," allowing you to truly feel the warmth and pulse of history through visual and emotional resonance.
| 参数 Parameter | 值 Value |
|---|---|
| 型号 Model | PD898TAN02 |
| 屏幕尺寸 Screen Size | 89.8 inch |
| 分辨率 Resolution | 1920 × 1080 |

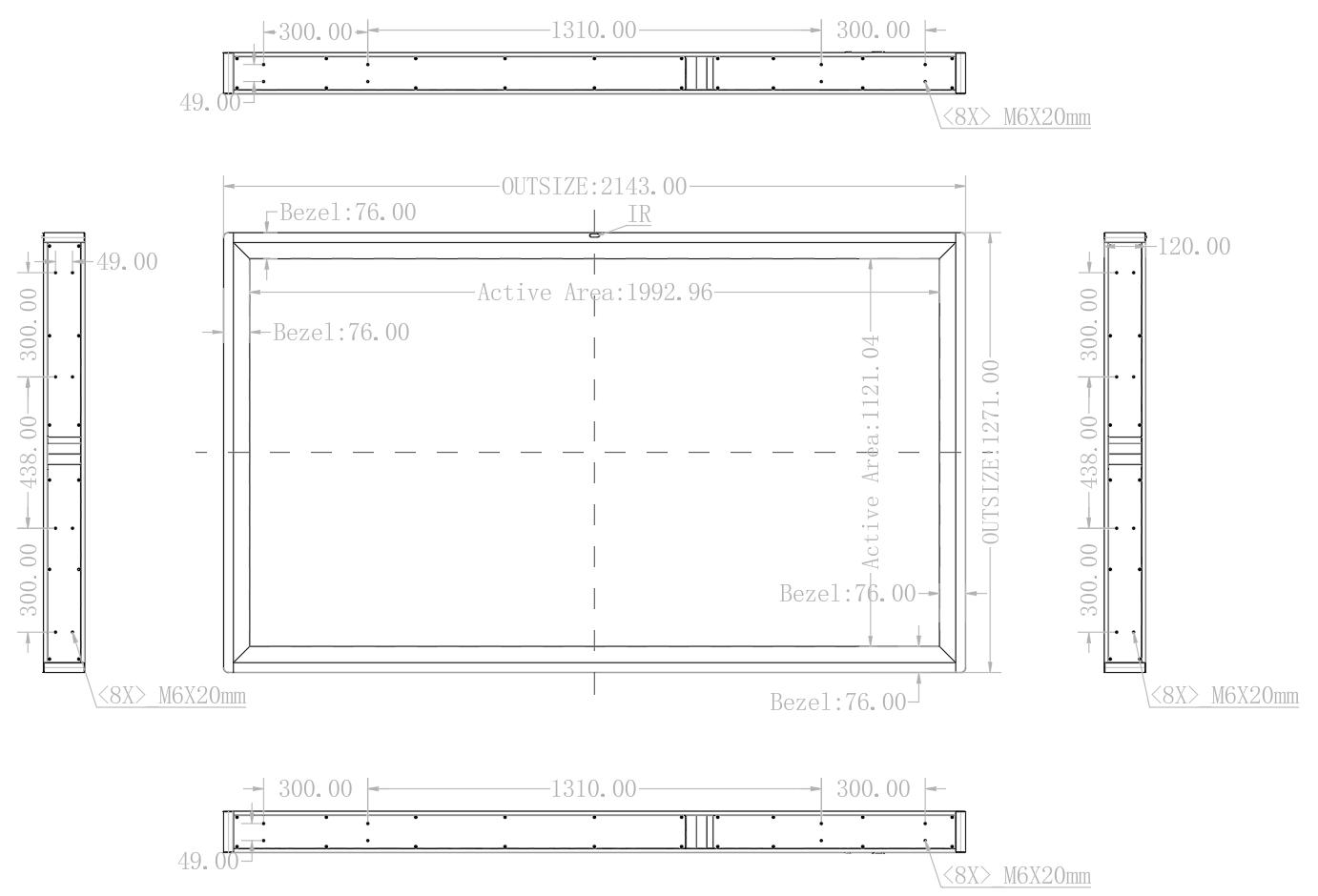

| 外形尺寸 Outline Dimension | 2143.0(H) × 1271.0(V) × 120.0(D) mm |
| 显示区域 Active Area | 1992.96(L) × 1121.04(W) mm |
| 可视角度 Viewing Angle (H/V) | 178° / 178° |
| 亮度 Brightness | 0 ~ 500 nit |
| 表面处理 Surface Treatment | AG Haze 5% / Hard coating: 6H and more |
| 背光寿命 Backlight Lifetime | 50,000 Hrs (Min.) |
| 参数 Parameter | 值 Value |
|---|---|
| 电源供应 Power Supply | DC 24V × 5A (5.5 × 2.5) |
| 功耗 Power Consumption | ≤ 120 W |
| 参数 Parameter | 值 Value |
|---|---|
| 四等边框 Bezel Width (U/D/L/R) | 76.0 mm |
| 机身尺寸 Cabinet Dimension | 2143.0(W) × 1271.0(H) × 120.0(D) mm |
| 设备重量 Device Weight | TBD |
| 包装尺寸 Package Dimension (1 pc) | TBD |
| 包装重量 Package Weight (1 pc) | TBD |
| 参数 Parameter | 值 Value |
|---|---|
| 主板 Main Board | R8512 |

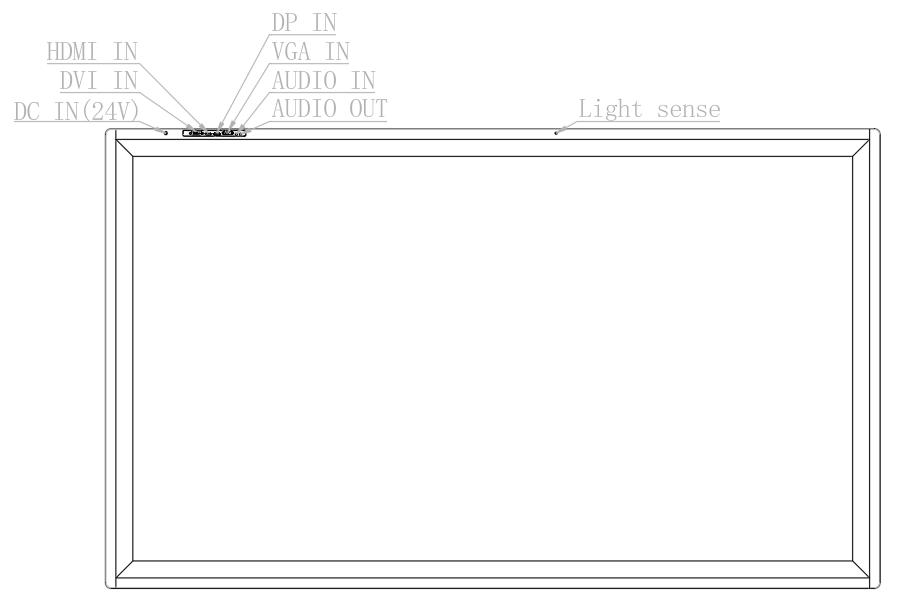

| 输入/输出接口 I/O Interface | DVI IN × 1 / HDMI IN × 1 / DP IN × 1 / VGA IN × 1 / Audio IN × 1 / Audio OUT × 1 |
| 参数 Parameter | 值 Value |
|---|---|
| 工作温度 Operating Temperature | -10 ~ +50 ℃ |
| 工作湿度 Operating Humidity | 95% RH |
| 存储温度 Storage Temperature | -25 ~ +60 ℃ |
| 存储湿度 Storage Humidity | 95% RH |

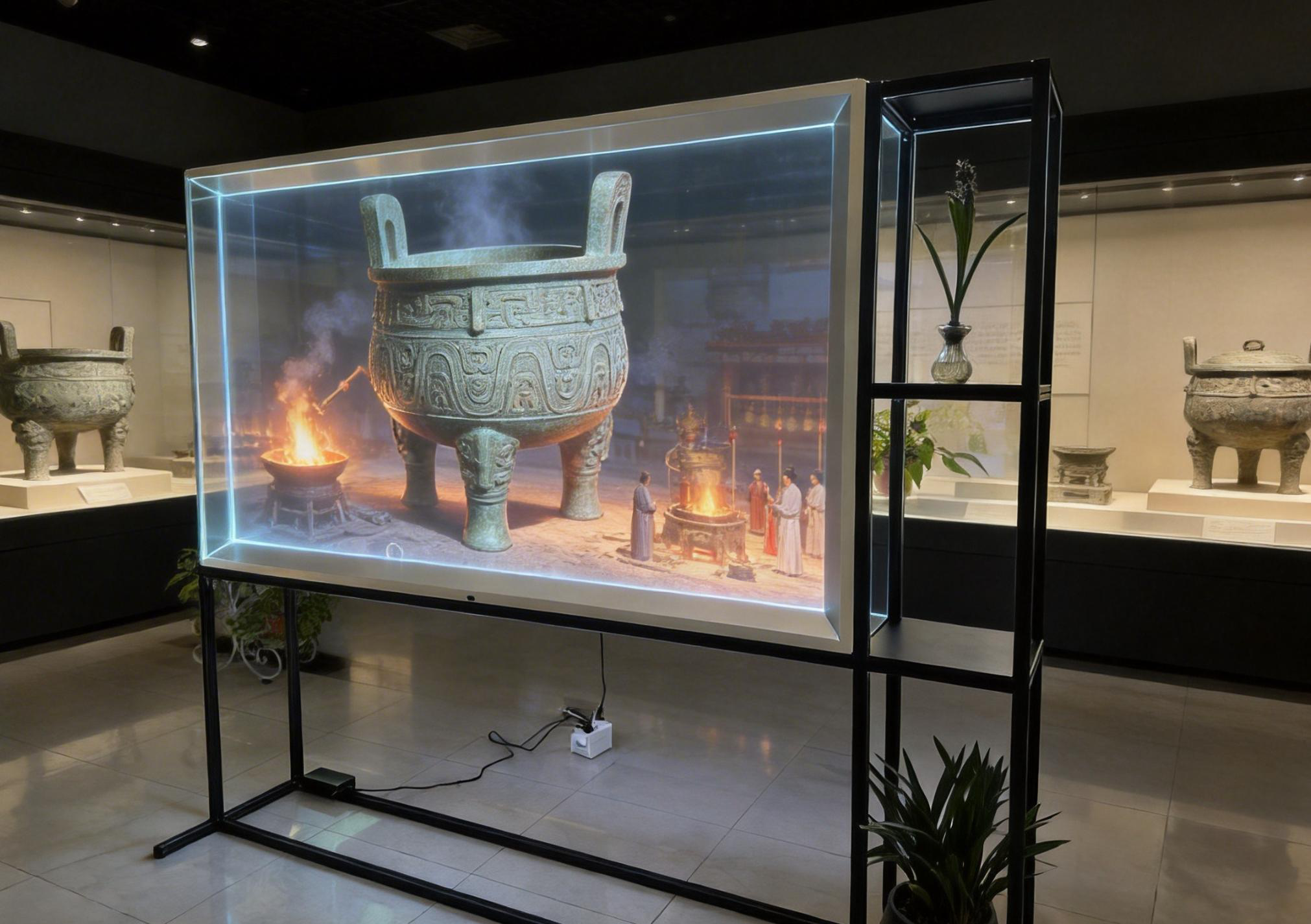

高对比度显示，突出青铜器的纹饰细节
High-contrast display to highlight bronze vessel ornamentation details
叠加青铜器铸造工艺动画、使用场景复原（如祭祀、宴饮）、铭文释读与历史背景
Overlay bronze casting process animations, usage scene recreations (e.g., rituals, banquets), inscription interpretation and historical background
手势控制旋转文物3D模型，查看不同角度的纹饰变化
Gesture-controlled rotation of artifact 3D models to view ornamentation changes from different angles

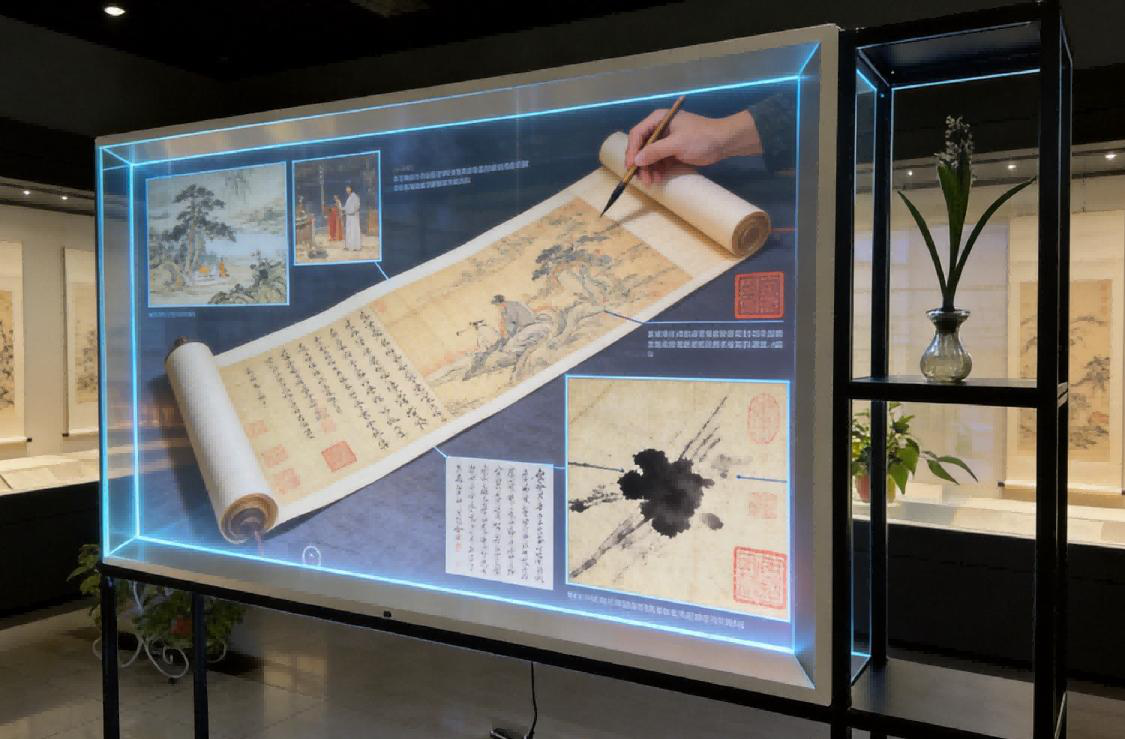

色彩高保真还原，确保画面色彩真实自然
High-fidelity color reproduction to ensure authentic and natural image colors
展示书画卷轴展开过程、画家创作背景故事、印章与题跋的解读、局部放大的笔墨细节
Show scroll unfolding process, painter's creative background stories, seal and inscription interpretation, and zoomed-in brushwork details
自动调光至低亮度状态，避免强光对纸质文物的潜在损害
Auto-dimming to low brightness to avoid potential light damage to paper artifacts

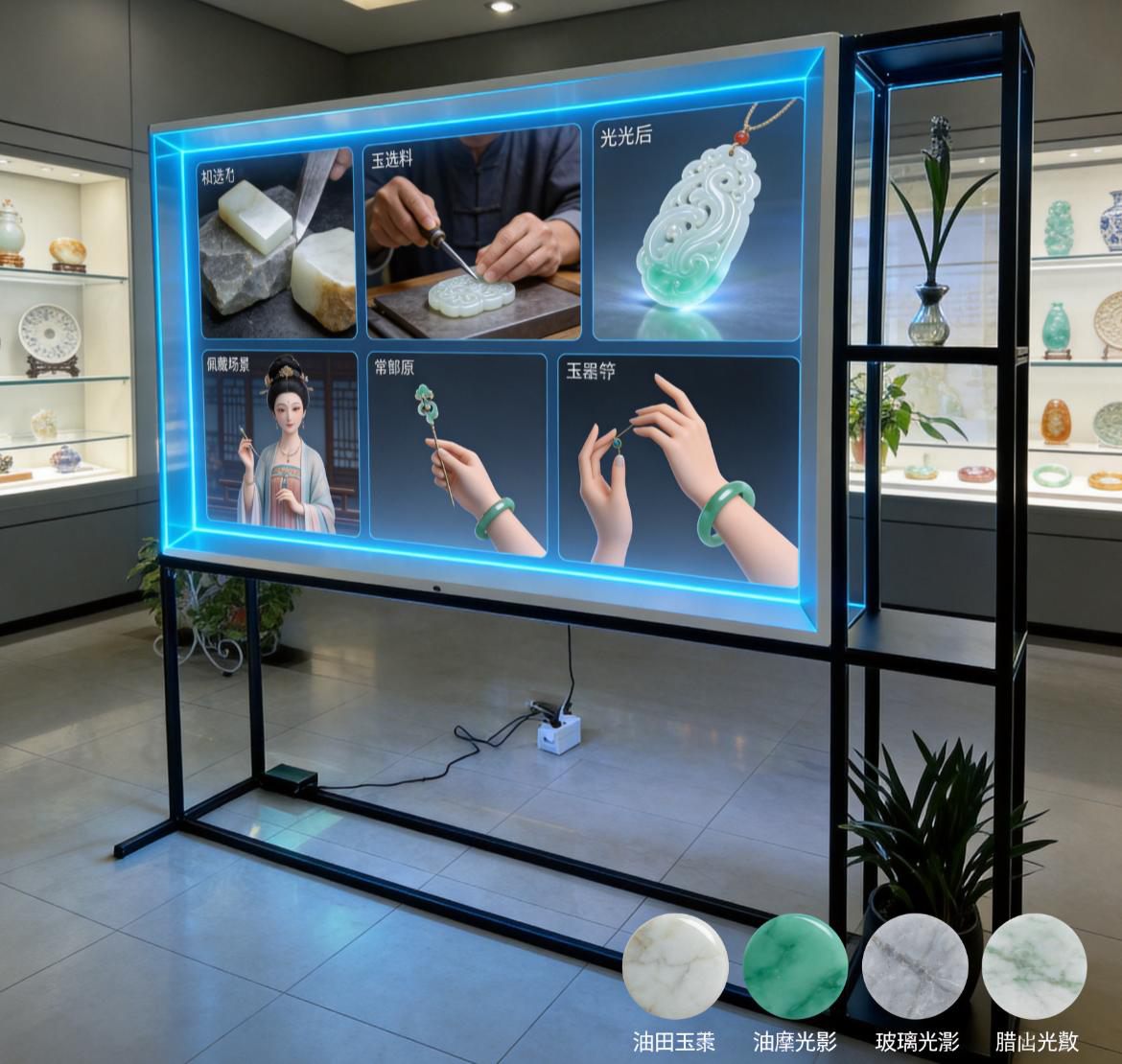

柔和显示模式，凸显玉器的温润质感
Soft display mode to highlight the warm and lustrous texture of jade
呈现玉器加工工艺（从选料到打磨）、不同朝代的玉器审美演变、佩戴场景与象征意义
Present jade processing techniques (from material selection to polishing), aesthetic evolution across dynasties, and wearing scenarios with symbolic meanings
叠加不同玉料（和田玉、翡翠、独山玉）的纹理对比，提升辨识度
Overlay texture comparisons of different jade materials (Hetian jade, jadeite, Dushan jade) to enhance recognition

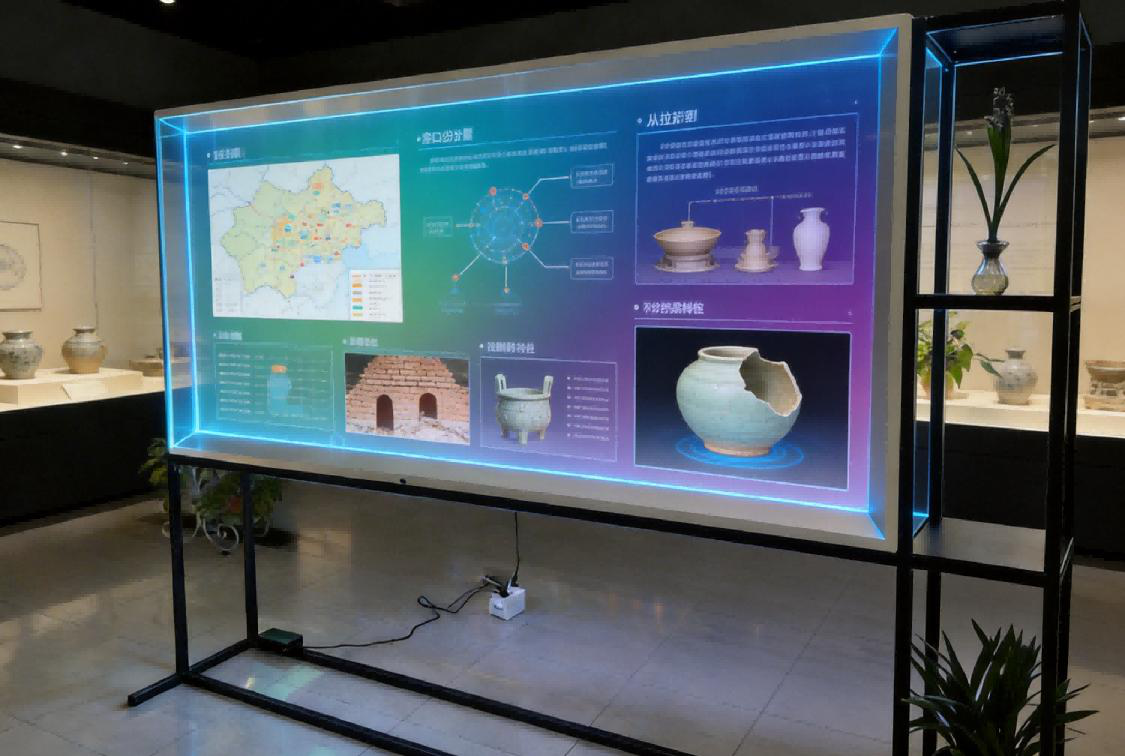

色域广覆盖，精确还原釉色层次
Wide color gamut coverage for precise reproduction of glaze color layers
展示窑口分布地图、烧制工艺流程（如拉坯、上釉、烧制）、不同窑系的风格特征对比
Show kiln distribution maps, firing process workflows (e.g., throwing, glazing, firing), and style comparisons across different kiln systems
对残缺陶瓷进行虚拟复原，让观众看到文物的完整形态
Virtually restore damaged ceramics, allowing visitors to see the complete form of artifacts
产品演示视频请参阅原始文档或联系销售人员获取。
Please refer to the original document or contact sales for product demonstration video.
